    05/08/13 - Updated pictures

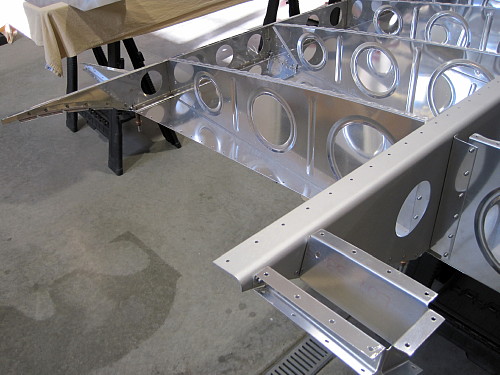

Inboard bottom skin is attached first.

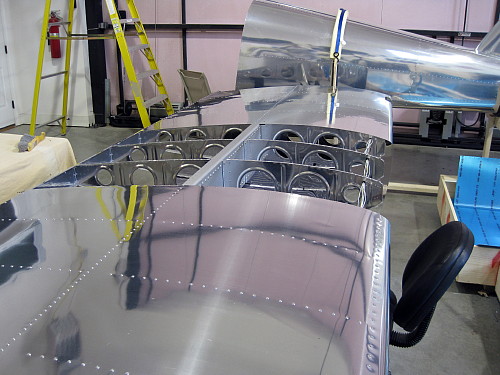

Then the outboard bottom skin.

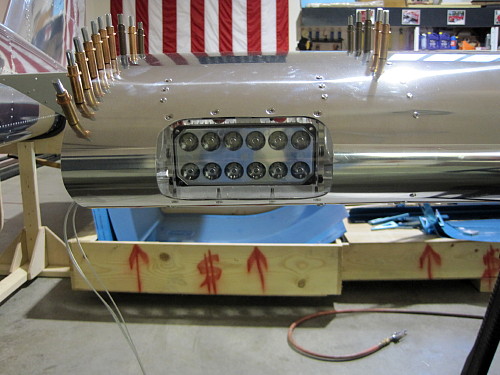

This skin was first prepped for the landing light then it was installed.

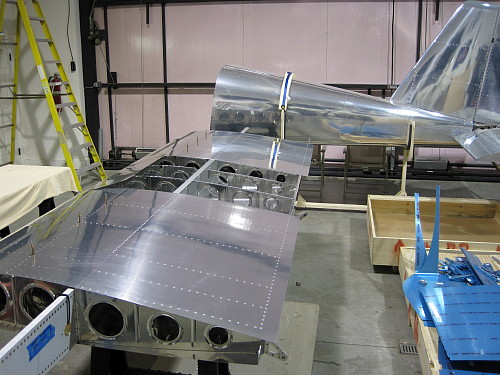

Ready for the middle bottom skin then the bottom is finished.

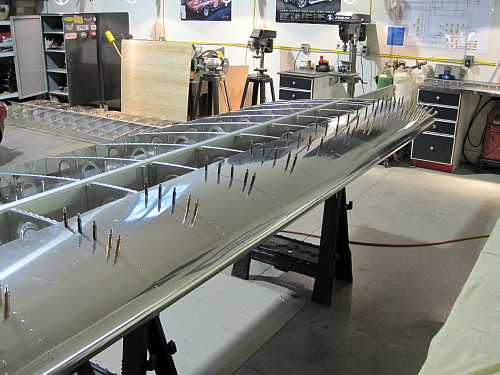

Wing flipped and leading edge riveted.

Inboard and outboard top skins riveted.

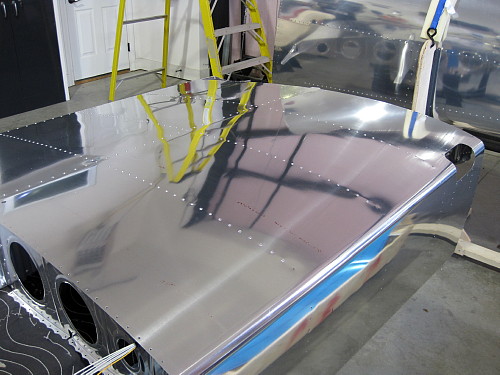

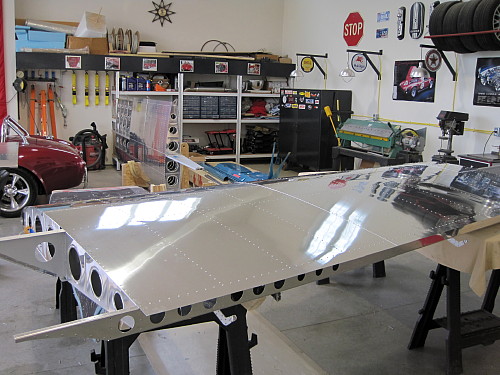

Wings are skinned.  Now ready for the tips.

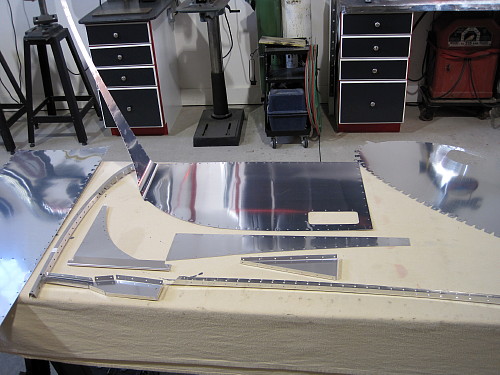

The wingtip parts.

The handle and rear rib rivited in-place.

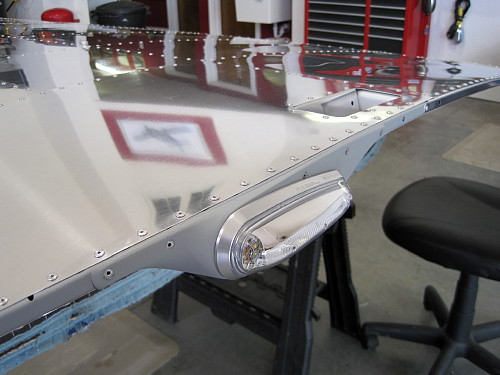

Tip skins riveted, ready for the strobe/position light installation.

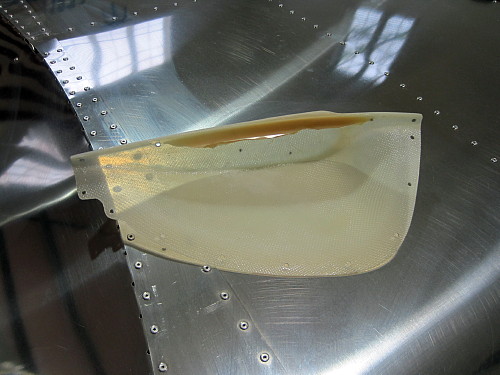

Fiberglass tip for the light fixture ready to be installed.

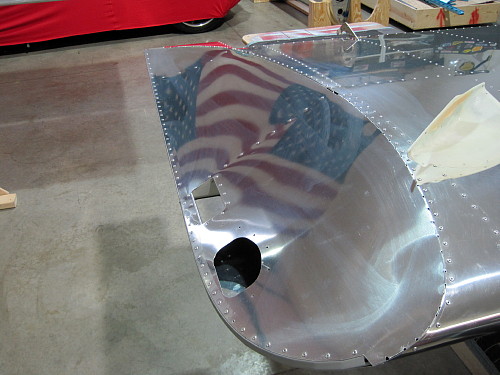

Tip completed.

The actual wings are completed.  Work continues on the flaperons.  Those pictures are on the next page.
